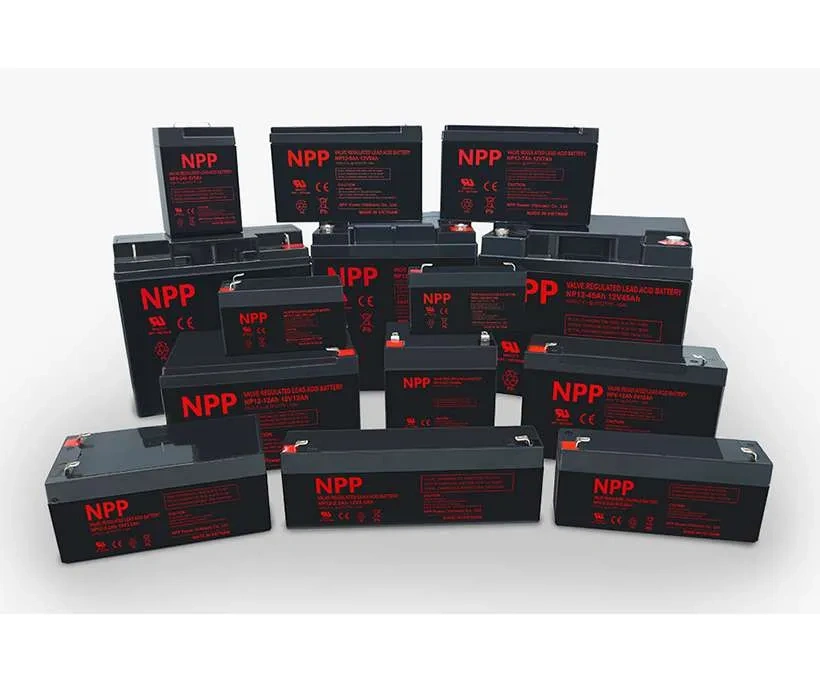

Energy Storage VRLA Rechargeable Valve Regulated Lead Acid Battery

NPP Power general-purpose series batteries are designed with state-of-the-art AGM (absorbent glass mat) technology, high-performance plates and electrolyte. With excellent value and characteristics, this range is suitable for all general purpose applications.

Characteristics

Capacity range: 1.2Ah to 3000Ah
Available in: 2V cells; 4V, 6V and 12V blocks
EUROBAT design life:
2V > 200Ah: > 12 years, Very Long Life
4V/6V/12V ≤ 28Ah: 3 – 5 years, Standard Commercial
6V/12V > 28Ah: 10/12 years, Long Life
Self-discharge per month: ≤ 3% at 25°C
Operation temperature range: – 20°C to + 50°C
Recommended operation temperature: 25°C

Design Features

Stable quality & high reliability
Long service life
Maintenance-free operation
Heavy-duty grids
Low self-discharge
Container available in flame retardant (UL 94-V0)

Applications

Emergency light systems
Firefighting equipment
Alarm systems
UPS
Electric toys
Medical equipment
Telecommunications
IT equipment

Compliant to: EUROBAT, RoHS, WEEE’s, Reach Manufactured according to IEC 60896-21 / 22, IEC 61427-1:2013

12v

Battery_Model	Nominal Voltage【v】	Rated C apacity[Ah], 25°C			Internal Resistance [mΩ]	Terminal Type	TypeTerminal Location	Design Life [years]		Weight[kg]	Length[mm]	Width[mm]	Height[mm]	Total Height[mm]

		20Hr 1.80V/cell	10Hr 1.80V/cell	3Hr 1.80V/cell				JIS 25°C	EUROBAT 20°C
NP12-1.2Ah	12	1.2	1.1	0.9	90	T1	E	5	3-5	0.54±5%	98±1	43±1	52±1	58±1
NP12-2Ah	12	2	1.9	1.4	72	T1	C	5	3-5	0.74±5%	70±1	47±1	98±1	103±1
NP12-2.3Ah	12	2.3	2.1	1.6	60	T1	C	5	3-5	0.88±5%	178±1	34±1	60±1	66±1
NP12-2.9Ah	12	2.9	2.7	2.1	45	T1	D	5	3-5	1.05±5%	79±1	56±1	99±1	104±1
NP12-3.2Ah	12	3.2	3	2.3	50	T1	F	5	3-5	1.20±5%	134±1	67±1	61±1	67±1
NP12-4.5Ah	12	4.5	4.2	3	30	T1/T2	C	5	3-5	1.50±4%	90±1	70±1	101±1	107±1
NP12-5.5Ah	12	5.5	5	3.9	32	T1/T2	F	5	3-5	1.85±4%	151±1.5	65±1	94±1	100±1
NP12-7Ah	12	7	6.5	5.1	25	T1/T2	F	5	3-5	2.10±4%	151±1.5	65±1	94±1	100±1
NP12-7.2Ah	12	7.2	6.7	5.2	30	T1/T2	F	5	3-5	2.20±4%	151±1.5	65±1	94±1	100±1
NP12-9Ah	12	9	8.2	6.3	20	T1/T2	F	5	3-5	2.50±4%	151±1.5	65±1	94±1	100±1
NP12-12Ah	12	12	11	8.7	19	T1/T2	F	5	3-5	3.40±4%	151±1.5	98±1	95±1	101±1
NP12-18Ah	12	18	16.8	13.1	15	T3/T12	D	5	3-5	5.30±4%	181±2	77±1	167±2	167±2
NP12-20Ah	12	20	18.5	14.5	12	T3/T12	D	5	3-5	5.50±4%	181±2	77±1	167±2	167±2
NP12-26Ah	12	26	24	18.9	12	T4/T12	D	5	3-5	7.90±4%	166±2	175±2	125±2	125±2
NP12-35Ah	12	37	35	25	11	T6/T14	C	10	10-12	10.50±3%	195±2	130±2	155±2	167/180±2
NP12-45Ah	12	47	45	33	7.5	T14	D	10	10-12	13.80±3%	197±2	165±2	170±2	170±2
NP12-55Ah	12	58	55	41.1	6.5	T14	C	10	10-12	17.30±3%	230±2	138±2	211±2	215±2
NP12-65Ah	12	69	65	48	6.5	T14	C	10	10-12	20.40±3%	350±2	166±2	179±2	179±2
NP12-80Ah	12	84	80	60	5.5	T14	C	10	10-12	24.20±3%	260±2	168±2	211±2	215±2
NP12-90Ah	12	95	90	67.5	5	T14	C	10	10-12	27.00±3%	306±2	169±2	211±2	215±2
NP12-100Ah	12	106	100	75	4.5	T16	C	10	10-12	29.50±3%	330±2	171±2	214±2	220±2
NP12-120Ah	12	127	120	90	4	T16	C	10	10-12	34.80±3%	409±2	176±2	225±2	225±2
NP12-150Ah	12	159	150	112.5	4	T16	C	10	10-12	41.80±3%	485±2	172±2	240±2	240±2
NP12-160Ah	12	169	160	120	3.5	T16	E	10	10-12	50.00±3%	530±2	207±2	214±2	218±2
NP12-180Ah	12	190	180	135	3.2	T16	E	10	10-12	54.00±3%	530±2	207±2	214±2	218±2
NP12-200Ah	12	212	200	150	3.5	T18	E	10	10-12	59.50±3%	522±2	238±2	218±2	222±2
NP12-250Ah	12	266	250	187.5	3	T18	E	10	10-12	72.00±3%	521±2	269±2	220±2	224±2

6V&4V

Battery_Model	Nominal Voltage [V]	Rated C apacity [Ah], 25oC			Internal Resistance [mΩ]	Terminal Type	Terminal Location	Design Life [years]		Weight [kg]	Length [mm]	Width [mm]	Height [mm]	Total Height [mm]
		20Hr 1.80V/cell	10Hr 1.80V/cell	3Hr 1.80V/cell				JIS 25°C	EUROBAT 20°C
NP6-1.2Ah	6	1.2	1.1	0.8	52	T1	C	5	3-5	0.28±5%	98±1	25±1	52±1	58±1
NP6-2.8Ah	6	2.8	2.6	1.9	27	T1	A	5	3-5	0.48±5%	66±1	33±1	97±1	103±1
NP6-3.2Ah	6	3.2	3	2.3	25	T1	C	5	3-5	0.60±5%	134±1	34±1	61±1	67±1
NP6-5Ah	6	5	4.7	3.6	15	T1	A	5	3-5	0.84±5%	70±1	48±1	101±1	107±1
NP6-8Ah	6	8	7.5	5.8	10	T1/T2	C	5	3-5	1.28±5%	151±1	34±1	94±1	100±1
NP6-12Ah	6	12	11	8.7	10	T1/T2	C	5	3-5	1.70±5%	151±1	50±1	94±1	100±1
NP6-100Ah	6	106	100	75	3	T14	A	10	10-12	14.80±3%	194±2	170±2	205±2	210±2
NP6-150Ah	6	159	150	112.5	2.5	T16	B	10	10-12	24.00±3%	260±2	180±2	245±2	250±2
NP6-180Ah	6	190	180	135	2.2	T16	B	10	10-12	27.50±3%	306±2	169±2	220±2	225±2
NP6-200Ah	6	212	200	150	2	T16	A	10	10-12	29.00±3%	322±2	178±2	227±2	230±2
NP4-4.5Ah	4	4.5	4.2	3	15	T1	D	5	3-5	0.52±5%	47±1	47±1	101±1	107±1
NP4-9Ah	4	9	8.4	6	9	T1/T2	C	5	3-5	0.95±5%	102±1	44±1	95±1	101±1

Battery_Model	Nominal Voltage [V]	Rated Capacity [Ah], 25oC			Internal Resistance [mΩ]	Terminal Type	Terminal Location	Design Life [years]		Weight [kg]	Length [mm]	Width [mm]	Height [mm]	Total Height [mm]
		20Hr 1.80V/cell	10Hr 1.80V/cell	3Hr 1.80V/cell				JIS 25°C	EUROBAT 20°C
NP2-100Ah	2	107	100	75	0.8	T16	A	10	10-12	5.30±4%	171±2	72±1	205±2	210±2
NP2-150Ah	2	159	150	113	0.6	T18	G	10	10-12	8.00±4%	171±2	102±2	206±2	221±2
NP2-200Ah	2	204	200	150	0.8	T20	G	15	>12	12.70±3%	171±2	111±2	330±2	364±2
NP2-300Ah	2	318	300	225	0.7	T20	G	15	>12	18.00±3%	171±2	151±2	330±2	364±2
NP2-400Ah	2	424	400	300	0.6	T20	H	15	>12	25.50±3%	210±2	176±2	330±2	367±2
NP2-500Ah	2	530	500	375	0.5	T20	H	15	>12	31.50±3%	241±2	171±2	330±2	365±2
NP2-600Ah	2	636	600	450	0.5	T20	H	15	>12	36.50±3%	302±2	175±2	330±2	367±2
NP2-800Ah	2	848	800	600	0.4	T20	J	15	>12	50.50±3%	410±2	175±2	330±2	367±2
NP2-1000Ah	2	1060	1000	750	0.3	T20	J	15	>12	60.50±3%	475±2	175±2	330±2	367±2
NP2-1500Ah	2	1590	1500	1125	0.2	T20	K	15	>12	93.00±3%	400±2	350±2	345±2	382±2
NP2-2000Ah	2	2120	2000	1500	0.2	T20	L	15	>12	124.0±3%	490±2	350±2	345±2	382±2
NP2-3000Ah	2	3180	3000	2250	0.1	T20	L	15	>12	180.0±3%	710±2	350±2	345±2	382±2
